ETALON A08432

DESCRIPTION
TECHNICAL SPECIFICATION

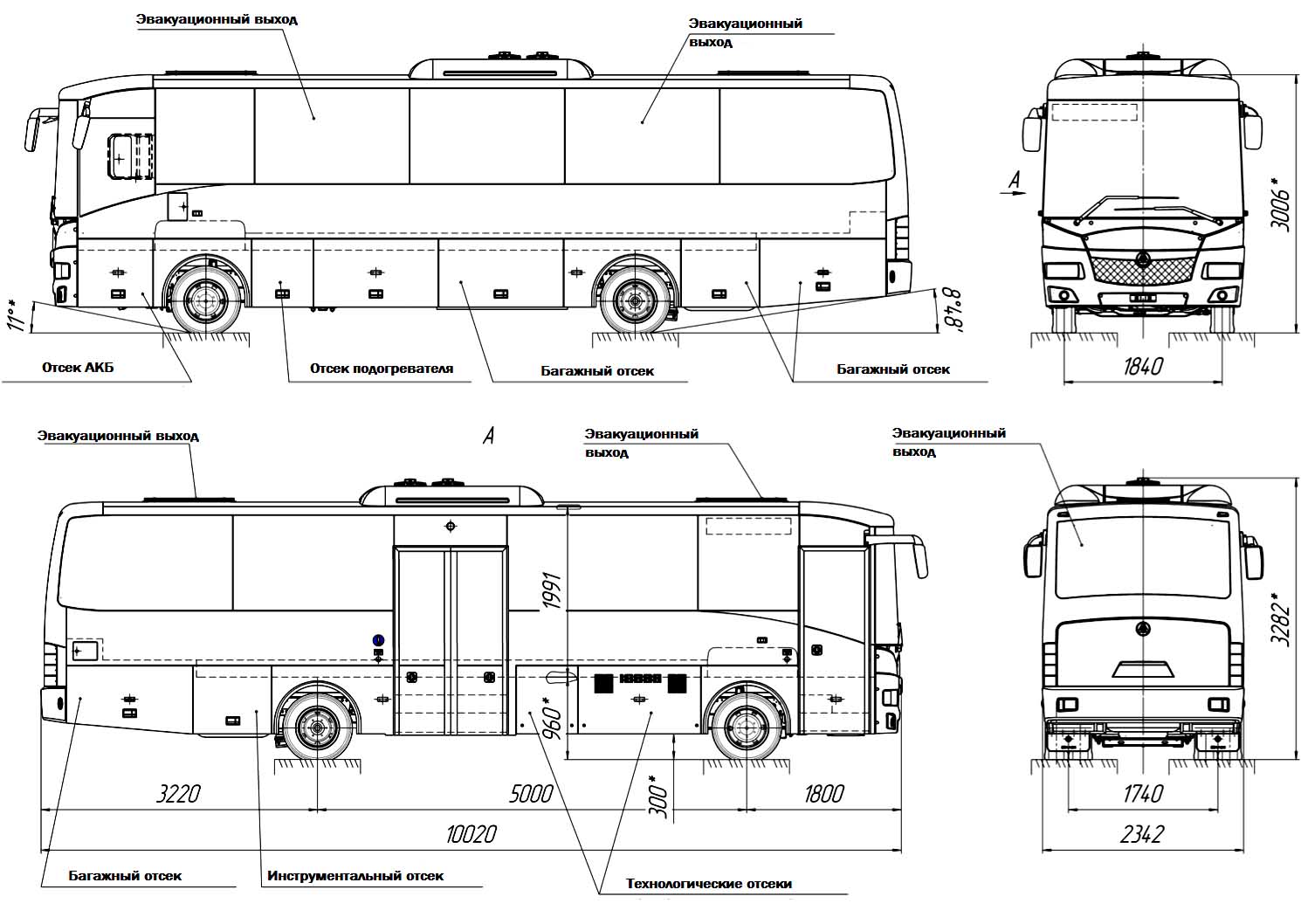

PLAN

Bus ETALON A08432 “Tulip” was developed by the designers of the Etalon Corporation in accordance with European environmental and safety standards. One of the key features of the model is compliance with Euro 6 environmental standards, which opens up wide opportunities for entering export markets, primarily in Eastern European countries, such as Romania, Bulgaria, Slovakia, the Czech Republic, and Poland. By the way, the bus is already certified in the EU.

A 10-meter double-door bus was completed on the chassis of DAF. It is positioned as a middle-class intercity bus, but can be actively used for tourism purposes, as well as as transport for transfer. The cabin, made of quality materials, has 36 comfortable seats equipped with seat belts. The total passenger capacity is 53 people.

Above the rows of seats under the ceiling are wide shelves for luggage. The bus has luggage compartments of 3.2 m3. In the summer, a comfortable stay in the cabin of the bus provides air conditioning with a capacity of 21 kW.

The maximum speed of the bus is 120 km / h. It is ensured by the coordinated operation of the 4-cylinder in-line turbodiesel engine PACCAR PX5 157 K1 with a volume of 4.5 liters and a capacity of 213 hp. To change gears, a 6-speed manual gearbox ZF is used.

The smoothness of movement on the road is provided by the front dependent spring and rear dependent spring-air suspension.

The hull structure is made of high-quality materials, provides the necessary rigidity and reliability, while allowing to achieve weight reduction, which reduces the overall dimensions of the entire bus.

The frame is made of profile pipes coated inside and out with an anti-corrosion compound, passenger doors and trunk doors are aluminum, the outer skin can be made of stainless steel. The roof is made of fiberglass, and the ceiling is sheathed with aluminum composite sandwich panels.

Features

model bus A08432 “Tulip” (II class, Euro 6)

Body type

frame body, carriage type installed on chassis

Chassis

DAF

Passenger capacity:

– sitting and standing

53

– sitting only

36

Overall dimensions, mm:

– length

10020

– width

2342

– height (with A/C)

3282

Wheel base, mm

5000

Wheel track, mm:

– front

1840

– rear

1736

Curb weight, kg

8480

Gross vehicle weight, kg

12960

Maximum axial load, kg:

– front axle

4480

– rear axle

8480

Engine:

– model, type

PACCAR PX5 157K1 Euro-6 diesel, turbocharged, with intercooler

– the number and arrangement of cylinders

4, in line

– displacement, l

4,5

– maximum power, kW (hp)

157 (213)/2300

– maximum torque, Nm

850/1200-1500

– cooling system

liquid

Gear box

ZF Manual transmission, 6 forward, 1 reverse

Suspension:

– front

conventional, on 2 parabolic springs with stabilizer of lateral stability and two hydraulic shock absorbers

– rear

conventional, spring-pneumatic with stabilizer of lateral stability and two hydraulic shock absorbers

Steering system

with hydraulic booster

Brake:

– working

pneumatic,dual circuit brake force regulator with ABS, ESP, ASR

– parking

with spring actuators

Passenger doors

pneumatic

Tyres

245/70 R 17.5 (Goodyear)

Maximum speed, km/h

120

Air conditioning system

air conditioning system cooling capacity 21kWt
