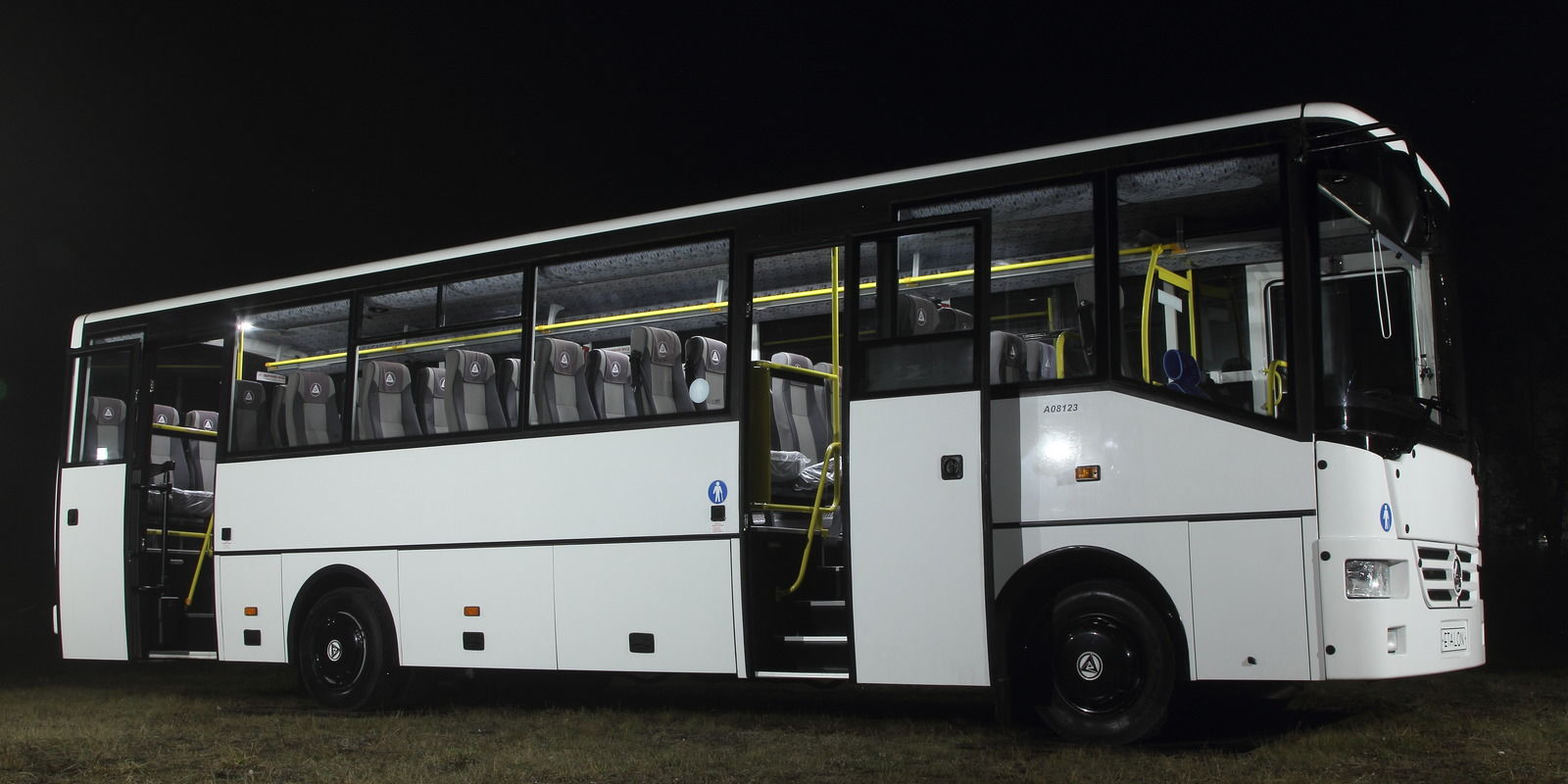

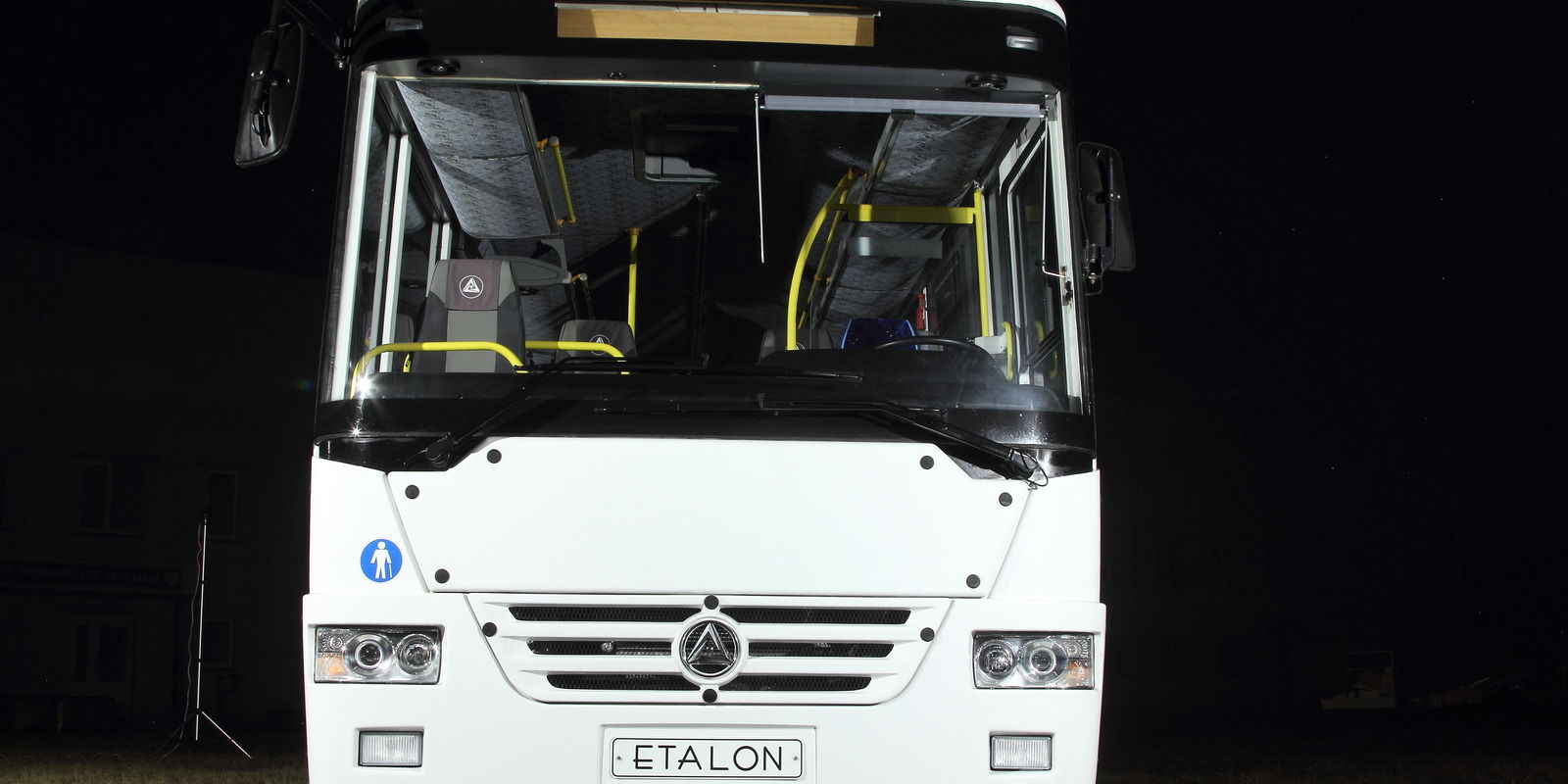

Bus model ETALON A08123 “Troyanda” – a long-distance bus having a high degree of integration with city vehicles of the model range A08110. This fact simplifies maintenance and repair of this model.

The bus is built on the Ashok Leyland Eagle chassis, has a frame body structure, inside and out treated with anti-corrosion protection. The design of the bus is highly reliable and safe.

This modern and comfortable bus is ideal for long-distance transport and for long-distance tourist trips.

The 5.76-liter ASHOK LEYLAND H6E4S123 diesel engine complies with Euro-4 environmental standard.

The bus copes with driving on a dirt road without compromising passenger comfort – the air-spring suspension with hydraulic telescopic shock absorbers provides increased ride comfort.

The bus interior is equipped with 38 comfortable soft seats. Above them, under the ceiling, is the luggage rack. The seats are equipped with seat belts, comfortable handrails are available. The total passenger capacity of the bus is 57 people. Two doors are located in the front and rear of the bus. The bus has luggage compartments located under the floor.

Ventilation is provided by sliding windows on the side windows and two ceiling hatches, but there is also an air conditioning option. Air conditioning is not the only option, it is possible to equip the interior with displays,WI-FI etc.

Features

shuttle bus

seats are soft unadjusted with seat belts

Body type frame body, with front engine location
Chassis Ashok Leyland EAGLE 816 LHD 4200WB
Passenger capacity:
– total 57
– seating 37+1
Doors:
– front service single-door with pneumatic drive pantograph type
– back:
for А08123-10 manual opening spare
for А08123-30 service single-door with pneumatic drive pantograph type
Overall dimensions, mm:
– length 9440
– width 2342
– height 2900
Wheel base, mm 4900
Wheel track, mm:
– front 1720
– rear 1715
Curb weight, kg 7500
Gross vehicle weight, kg 11800
Engine:
– model, type diesel Ashok Leyland H6E4S123 EURO IV
– the number and arrangement of cylinders 6, in line
– displacement, l 5,76
– maximum power, kW(hp) 123 (160) / 2500
– maximum torque, Nm 540 (55) / 1500
– cooling system liquid
Maximum speed, km/h 100
Tires 235/75 R17,5 or 245/70 R17,5
Gearbox five-speed manual gearbox, ZF 5-36 OD
Suspension:
– front conventional on longitudinal parabolic springs with hydraulic telescopic shock absorbers and anti-roll bar
– back conventional, pneumatic spring with hydraulic telescopic shock absorbers and anti-roll bar
Steering system mechanical with hydraulic booster
Brake system:
– working dual-circuit with pneumatic drive and anti-lock brake system
– parking with spring power accumulators with rear wheel brake
Luggage compartment volume, m3 3,5
