ETALON A08116SH

DESCRIPTION
TECHNICAL SPECIFICATION

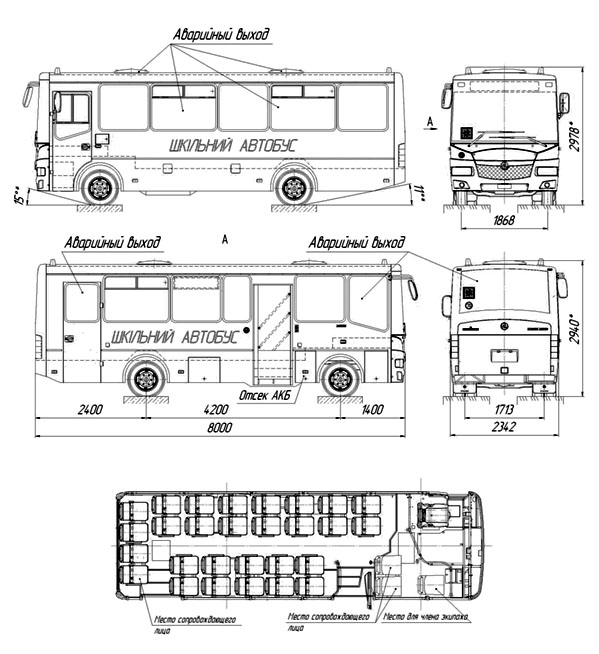

PLAN

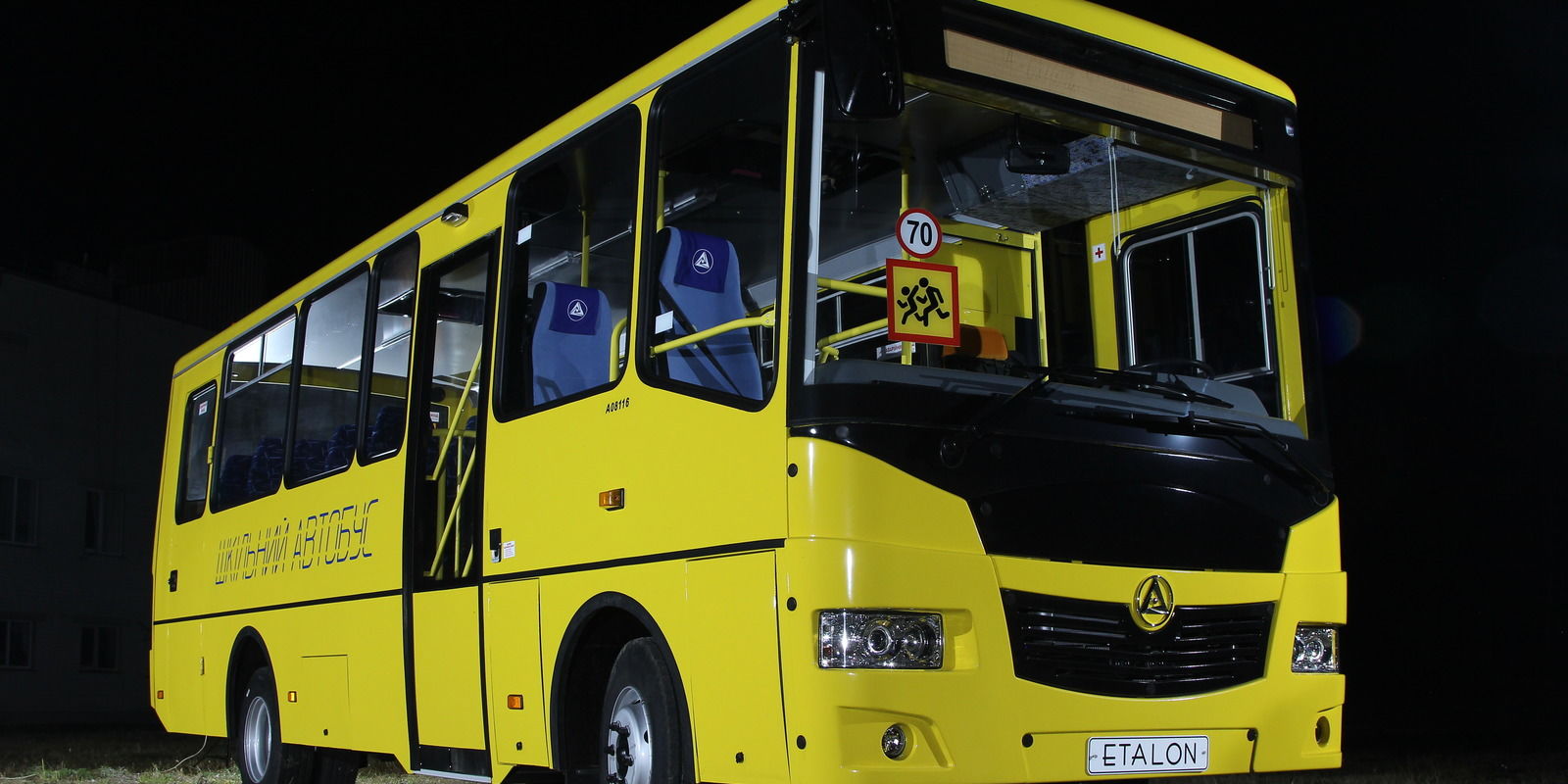

ETALON A08116SH is a specialized school bus equipped with flashing beacons on the roof at its corners, bearing the appropriate warning signs (“school bus”) on the sides and signs (speed limit “70”, “Caution for children”) on the rear and windshields.

The bus, designed on Ashok Leyland EAGLE 1016 LHD 4200WD units, is designed for 31 and 32 passengers. Seats are equipped with headrests and armrests. Entrance to the cabin is through a single-wing pneumatic door located in front of the bus. There is an emergency exit located at the level of the last row of seats. The flooring is made of non-slip materials.

On board there is an autonomous liquid heater, a speakerphone and a tachograph.

The type of bus body is a carriage with a carrier base, the engine is located in the front. This is an in-line six-cylinder diesel Ashok Leyland H6E5SD123 with a liquid cooling system that meets Euro 5 environmental standards. Its working volume is 5.76 liters, and the developed power reaches 160 hp. The bus has a five-speed manual gearbox GB 5S-OD. The maximum transport speed is electronically limited and is 70 km / h.

Braking is carried out using a dual-circuit system with adjustable force and pneumatic drive.

Features

the bus specialized for transportation of school students ETALON А08116SH-40/41

Body type

frame body, front engine

Chassis

Ashok Leyland EAGLE 1016 LHD 4200WB

Passenger capacity:

– seating А08116SH-40/41

28+3(accompanying persons)+1(crew member)

– seating А08116SH-20/21

27+3(accompanying persons)+1(crew member)

Overall dimensions, mm:

— length

8000

— width

2342

— height

2978

Wheel base, mm

4200

Wheel track, mm:

— front

1868

— rear

1713

Curb weight, kg

6400

Gross vehicle weight, kg:

8400

Axis distribution:

— front

3800

— back

4600

Engine:

— model, type

diesel Ashok Leyland H6E5SD123 EURO V

— the number and arrangement of cylinders

6, in row

— displacement, l

5,76

— maximum power, kW(hp)-1

123(160)/2400

— maximum torque, Nm-1

550/1200-1900

— cooling system

liquid

Maximum speed, km/h

70 (limited)

Wheels and tires

6,75х17,5; 235/75R17, not lower 132/130 J

Gearbox

five-speed manual gearbox, ZF 5-36 OD

Suspension:

— front

conventional, on longitudinal parabolic springs with telescopic hydraulic shock absorbers and anti-roll bar

– back for А08116SH-40, А08116SH-20

conventional, on longitudinal parabolic springs with telescopic hydraulic shock absorbers and anti-roll bar

– back for А08116SH-41, А08116SH-21

conventional, air spring with two air cylinders, with telescopic hydraulic shock absorbers and anti-roll bar

Control gear

mechanical with hydraulic booster
Brake system:

— working

double-circuit with pneumatic drive, brake force regulator, equipped with anti-lock braking system and directional stability system (option)

— parking

rear wheel brakes from spring-loaded batteries

Doors

with one passenger single-wing door with pneumatic drive and one emergency single-door

Flashing lights

two – in front and rear of the bus

Buttons – Signal to the driver

in the cabin, four on each side of the bus

Tachograph

digital tachograph

Seats for students

with a place for a backpack
